Self-Activated Flood Barriers

Automatic Flood Gates

Automatic, self-closing flood gates protect personnel, properties, and irreplaceable assets 24/7/365 - with no reliance on electrical power, physical manpower, or mechanical springs for deployment.

GATES

Passive Flood Control For Critical Infrastructure

Automatic Flood Protection In Action

Automatic flood protection gates use the power of hydrostatic pressure & rising floodwaters against itself. These devices automatically protect critical infrastructure assets, commercial buildings, life-saving hospitals, and multi-family devleopments from damage around-the-clock. Orange Flood Control, LLC has installed resilient, low-maintenance automatic gates at facilities across the United States. These self-rising barriers are stored underground – typically within a concrete, steel, or stainless-steel trough. When a storm strikes, the rising flood waters force the gate to float – raising the barrier into the deployed position. When stormwater recedes, passive barriers automatically lower for no-manpower retraction.

Automated Response For Unmanned Sites

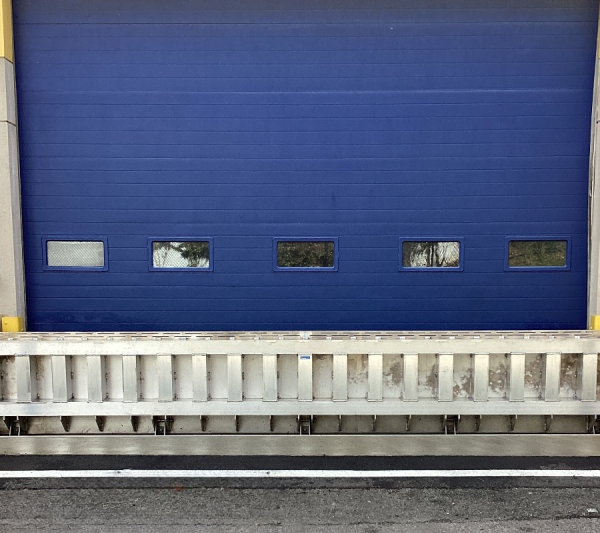

Automatic Flood Barriers

Promote uninterrupted operations, uptime, and continuity with automatic flood barriers. These products stand out for fully-autonomous operation with a minimal footprint. Devices protect people and property 24/7/365 – integrating with existing architecture and building aesthetics. When not in-use, systems remain concealed in the resting position – offering resiliency opportunites where traditional permanent flood barriers are not an option.

No Manual Intervention Or Power Required

No Offsite Storage – Systems Self-Store

Minimal Annual Testing & Maintenance

Simple Testing & Maintenance

Customizable To Extended Lengths & Heights

Streamlined Emergency Response & Planning

Automatic AquaTrigger© Barriers

Flip-Up Flood Gates

Secure your property with resilient flip-up flood barriers. When not in-use, this resilient flood device self-stores flush at the sidewalk, driveway, or pathway surface – eliminating slip & fall risks while preserving building aesthetics. When flooding occurs, hydrostatic pressure causes the passive gate to automatically self-pivot – delivering up to 14′ of water protection heights. With its versatile design and engineering configuration, the AquaTrigger flip-up gate is ideal for retail storefronts, exterior building openings, pedestrian doors, and loading docks.

Engineered For H-20/HS-20 Load Rating

Flush Self-Storage – No Tripping Hazards

Corrosion-Resistant Construction Materials

Minimal Below Grade Depth Clearance

Custom-Engineered For Every Application

Manual, Passive, Electronic Deployment

Always-In-Place, Passive Flood Gates Solutions

Self-Activating Flood Barriers

Passive flood gate barriers eliminate manual deployment steps and processes before a severe flooding event. Self-activating flood barriers provide automatic flood protection – regardless of personnel’s availability and location in the facility. These revolutionary flood control devices are expert-engineered for a long protection life-span with minimal maintenance requirements – providing resilient protection for decades.

Permanent 24/7/365 Flood Protection

Minimal Annual Maintenance Requirements

Maintains Building Aesthetics & Access

Proven Performance & Long-Service Life

Hidden Below Building’s Grade

Rated For HS-20 Loading

Self-Rising, Storing, & Activated Protection

Self-Closing Flood Gate

Protect your facility with a passive, automatic response to flooding risks. Self-closing flood barriers (SCFB) store recessed in the ground until deployment is required. During flash flooding conditions, the barrier is self-activated by rising waters – with no reliance on human intervention, manual assistance, or electricity. This device’s unique engineering design is well-suited for protecting retaining walls, pedestrian walk doors, driveways, loading ramps, and retail storefronts.

Engineered For H-20-44 Loading Standards

Steel, Aluminum, Stainless Steel Design

Minimal Installation Footprint

Simple Testing & Maintenance

Fast Deployment In Minutes

Ideal For Unmanned Locations

Contain Chemical, Doorway, & Industrial Spills

Automatic Spill Containment Gates

Automatic spill containment barriers deliver 24/7/365, always-ready defense that protects confidence, peace of mind, and reliability. Systems are designeed & engineered to autonomously deploy upon contact with liquids or contaminants – blocking floodwaters, chemical skills, firefighting/sprinkler water, and runoff before damage occurs. Products are manufactured with corrosion & chemical resistant materials to support repeat use & longevity.

Support Unobstructed Access When Not In-Use

Aligned With EPA, OSHA, & Regulatory Compliance Standards

Reduce Damage Costs & Cleanup Expenses

Increase Personnel & Worker Safety

Reduce Hazardous Liquid & Chemical Exposure

Engineered For Versatile Building Applications

Protect Your Personnel, Property, Equipment, And Assets

The Impact Of Automatic Flood Gate Barriers

Passive response, automatic flood gate barriers protect irreplaceable infrastructure from costly, time-consuming damage – without human intervention or electricity. These devices allow facilities to remain operational during severe flash/coastal flooding, natural disasters, heavy rainfall, or unpredictable storms – without evacuation, closure, or downtime. Install flood solutions that lower damage risk – without disrupting day-to-day operations or personnel.

Always In Place

Automatic gates provide a 24/7/365 passive response to severe flood risks – ready to deploy even when personnel isn’t available.

Independent-Party Tested

Automatic flood gates are inspected, tested, and validated by independent third-parties to ensure reliable performance.

Flexible Deployment

In addition to self-activation, these devices can be deployed manually or electronically when flood risks are imminent.

Stores Flush In-Ground

Devices store flush underground to prevent tripping hazards, maximize accessibility, and promote ADA compliance.

No Human Intervention

Passive flood gates operate automatically with no reliance on human intervention, electricity, power, or springs.

Point-Of-Use Self Storage

Passive response flood gates automatically store at the point of use – ready for rapid deployment during flooding.

Frequently Asked Questions (FAQs)

What Are Automatic Flood Gates?

Automatic flood gates activate with automated mechanisms to rise or slide into place during flooding emergencies. With built-in sensors, these gates automatically detect rising water levels, heavy rainfall, and increasing hydrostatic pressure. Unlike traditional flood mitigation devices, automatic gates do not require manual operations during emergencies. Rapid deployment can minimize floodwater ingress, protect major openings, and minimize downtime for critical infrastructure. Here are a few automatic flood gate applications across urban and coastal areas:

Rapid Deployment & Protection For Subway Entrances & Coastal Infrastructure
Large Flood Gates Protect Harbor Entrances In Coastal Areas
Rolling Flood Gates Ensure Protection For Wider Openings
Regulate Water Flow For Stormwater Management Plants & Reduce Excess Pressure On Sewage Systems
Protection For Parking Garages, Utility Rooms, & Underground Facilities

Once deployed, automatic devices create a strong barrier & active protection from floodwater.

How Automatic Flood Gates Work: Passive Buoyancy Activation?

Automatic flood gates rely on passive buoyancy activation to deploy and protect critical operations. While these devices offer varying configurations, the fundamental deployment process follows a similar process for rapid deployment:

The internal chambers in the device’s system experience water intrusion from rising floodwater
Buoyancy forces the device to self-rise and deploy into a vertical position
Built-in gaskets immediately create an integrated watertight seal, protecting critical assets from floodwater
When floodwater recedes, automatic flood gates go back into a non-deployed position

During dry conditions & normal days, the gates remain hidden in their chambers and support everyday vehicular and pedestrian access. Relying on rising flood levels, these devices ensure immediate activation, reliability, and peace of mind during flooding emergencies.

Passive vs. Sensor-Driven Automatic Flood Gates

Identify the key differences between passive and sensor-driven automatic flood gates. Heavy-duty, large-scale automatic flood gates are equipped with advanced sensors to identify rising water levels, hydrostatic pressure, and increased flow rates. With these advanced systems, flood gates maintain real-time monitoring that ensures rapid activation when needed. Of course, these systems rely on electric power or batteries to maintain 24/7 real-time monitoring, track environmental changes, and trigger instant alerts. This way, your team can deploy flood gates faster before flood water reaches critical areas.

Meanwhile, passive flood gates only rely on buoyancy to move into the deployed position and maintain a watertight seal. When flood water enters the internal chambers, these gates automatically deploy or swing into place. Primarily, passive flood gates use the hydrodynamic mechanism to maintain a watertight seal and prevent catastrophic damage to critical assets.

What Are Technical Specifications and Materials For Flood Gates?

Automatic flood barriers use multi-layer composite engineered structure to support strength, long-term durability, and water protection. Available in different technical specifications, these panels include multiple layers, including:

Aluminum Surface Layer: Always visible aluminum panel with anti-slip texture to maintain seamless operations
Buoyancy Layer: Stainless steel panel specifically designed to create sealed chambers that force the gate to come into position
Underside Layer For Protection: Stainless steel protective layer that safeguard other components from corrosion, water damage, and impact
Base Frame: Keeps flood gate into its position for uninterrupted emergency protection

Technical specifications for automatic flood gates depend on unique facility requirements, opening size, and protection goals. For instance, you can choose between flood panels from 24” to 48”+ in height. Based on the height, the panel thickness for these devices can range from 2” to 6”.

Maintenance, Testing, and Service Life

Always prioritize annual maintenance, expert testing, and on-time repairs to increase service life for automated flood gates. Comprehensive device maintenance keeps flood mitigation devices reliable, ready for efficient operations, and ensures long-term flood protection. With regular testing, inspection, and repair, your devices will maintain peak performance, ensure rapid deployment, and safeguard critical assets from flood damage. Here’s why all automatic flood gates require regular maintenance, testing, and servicing:

Extend overall life for flood mitigation systems to prevent irreversible device damage or expensive replacements
Remove debris, repair broken seals, and address mechanical issues to maximize efficient performance
Validate device performance for different flooding situations with expert testing
Maximize flood protection investment to avoid emergency repairs or long-lasting damage to critical assets

Remember, proactive flood device maintenance offers a more cost-effective approach to stay ahead of flooding emergencies. Invest in annual flood device maintenance to ensure your devices are ready to perform when needed.
